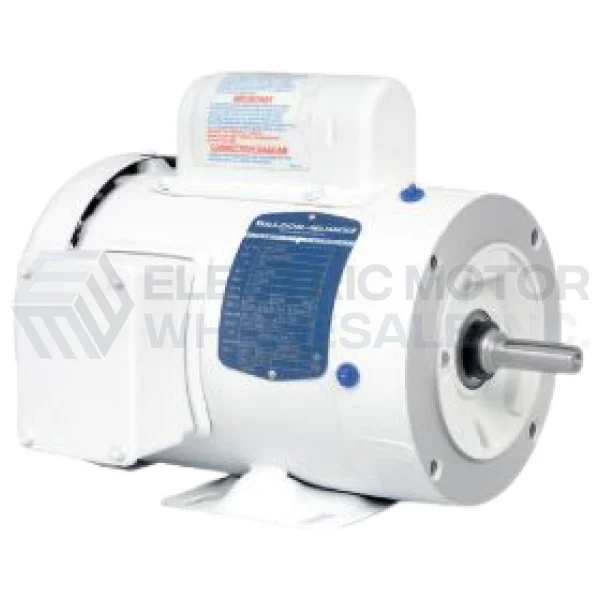

APPLICATIONS: Designed for use with food processing and other applications where motor is regularly exposed to high pressure wash down.
FEATURES:
- Moisture sealant on bolt heads, between frame and endplates
- Neoprene gaskets
- Double sealed bearings
- Forsheda® running contact v-ring slinger
- Stainless steel shaft
- Electrostatically applied epoxy finish
- Class F insulation
- Tropicalized
Specifications
|
Application: |
Washdown Epoxy |
|
Output HP: |
1.5 |
|
Output KW: |
1.1 |
|
Output RPM: |
3450 |
|
Frame NEMA: |
56C |
|
Mount NEMA: |
C-Face With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
115/230 |
|
Frequency (Hz): |
60 |
