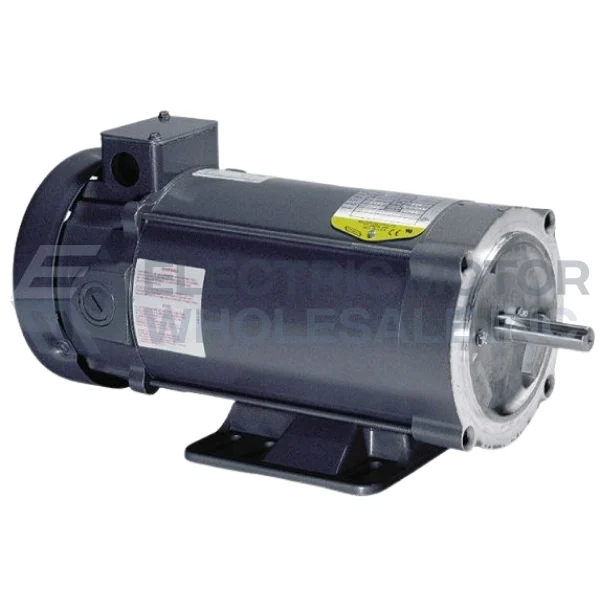

BALDOR NEMA frame DC motors include permanent magnet design for adjustable speed operation from SCR controls and have a 20:1 constant torque speed range.
APPLICATIONS: include conveyors, extruders, winders, printing presses and metering pumps. Most designs are constructed so a tachometer may be added for closed loop applications.
- 5/8″ Keyed output shaft
- NEMA C-face with removable base
- Tach adaptable
- Class F insulation
- Double sealed ball bearings
- UL and CSA recognized
Specifications
|
Application: |
General Purpose |
|
Output HP: |
1.5 |
|
Output KW: |
1.1 |
|
Output RPM: |
2500 |
|
Frame NEMA: |
145TC |
|
Mount NEMA: |
C-Face With Base |
|
Input Voltage DC: |
180 |
|
Full Load Amps: |
7 |
|
Winding: |
Permanent Magnet |
|
Enclosure NEMA: |
TEFC |
