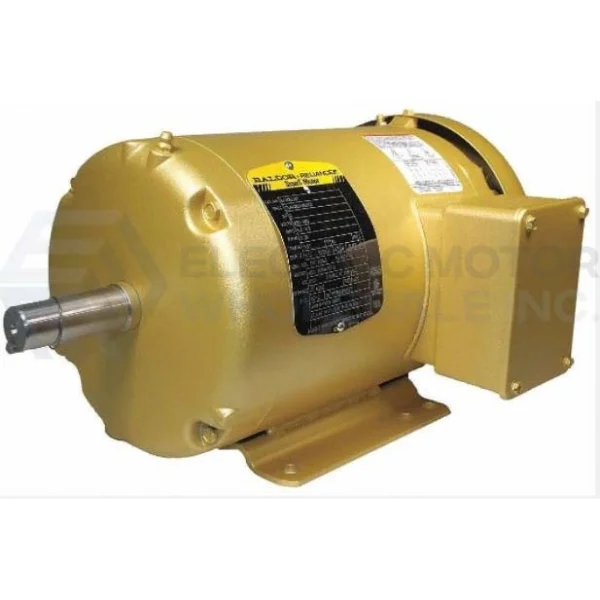

APPLICATIONS: Designed for typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods.
FEATURES:
- Class F insulated
- 1.15 service factor
- Inverter rated per NEMA MG1 Part 31.4.4.2
- Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives
- Heavy gauge steel and cast iron frames
- Ball bearings
- ISR® (Inverter Spike Resistant®) copper windings
- Low-loss electrical grade lamination steel
Specifications
|
Brand: |
Baldor |
|
Application: |
General Purpose |
|
Output HP: |
1.5 |
|
Output KW: |
1.1 |
|
Output RPM: |
1770 |
|
Frame Size NEMA: |
145T |
|
Mount NEMA: |
With Base |
|
Enclosure NEMA: |
TEFC |
|
Enclosure IEC: |
IP44 |
|
Voltage: |
230/460 |
