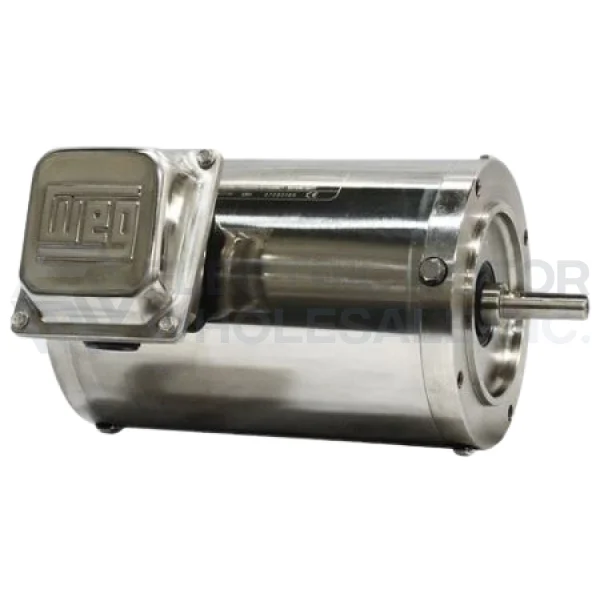

1/3HP WEG 1735RPM 56C TENV IP56 3PH SHARK WASHDOWN MOTOR .3318EP3ESS56CFL

APPLICATIONS: Shark Washdown line was designed for use in food processing, pharmaceutical and other applications requiring extreme cleanliness.

FEATURES:

• Totally Enclosed, non ventilated
• C-Face without base, footless mounting
• Stainless Steel (AISI 304) shaft
• 1-10HP NEMA Premium
• Degree of protection: IP56
• Class F epoxy insulation
• 1.15 Service Factor
• Meets NEMA MG1 Part 31 for Inverter Duty operation
• Nameplate data laser etched on body of motor

This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays. Do not use this product in an explosion-proof application.

Specifications
