APPLICATIONS: General purpose with continuous duty rating. Standard operating characteristics and mechanical construction for use under usual service conditions without restriction to a particular application or type. Not for outdoor use.

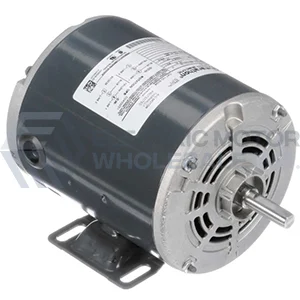

SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.
FEATURES:
- Automatic overload protection
- Economical split phase design
- Heavy gauge steel frame and base
- Shaft extension 1-1/2” long by 1/2” diameter
- Ball bearings
- 1.0 Service Factor
- UL Recognized and CSA Certified
- Footnotes: 3,7
Specifications
|
Application: |
General Purpose |
|
Output HP: |
1/3 |
|
Output KW: |
0.25 |
|
Output RPM: |
1725 |
|
Frame NEMA: |
48 |
|
Mount NEMA: |
Base Mount |
|
Enclosure NEMA: |
ODP |
|
Enclosure IEC: |
IP22 |
|
Voltage: |
115 |
|
Frequency (Hz): |
60 |
