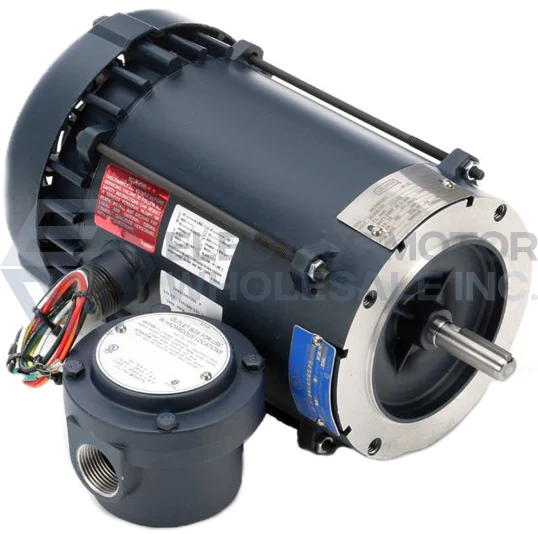

LEESON Single Phase Explosion Proof Electric Motors are designed and approved for application in hazardous environments having certain explosive gases or materials present.
FEATURES:
- Made in USA
- 5/8″ Keyed output shaft
- UL and CSA listed.
- Double shielded, pre-lubricated ball bearings are standard
- Automatic overload protection
- 1.0 Service Factor
- Capacitors on single phase designs are mounted inside the motor frame.
- Explosion-proof conduit box
MOTOR RATING: (Click on the packet above for LEESON’s Hazardous Ratings Chart)
- DIVISION I, CLASS I, GROUPS C&D
- DIVISION I, CLASS II, GROUPS F&G – WITH CONDUIT BOX
- NO LEESON motors are listed for Class I, Group A or B
This product must be installed and serviced by a qualified technician, electrician, or electrical maintenance person familiar with its operation and the hazards involved. Proper installation, which includes electrical connections, fusing or other current protection, and grounding, can reduce the chance of electrical shocks, and fires, in this product or products used with this product, such as electric motors, switches, coils, solenoids, and relays.
Specifications
|
Application: |
Explosion Proof |
|
Output HP: |
1/3 |
|
Output KW: |
0.25 |
|
Output RPM: |
3450 |
|
Frame NEMA: |
56C |
|
Mount NEMA: |
C-Face No Base |
|
Enclosure NEMA: |
EPFC |
|
Enclosure IEC: |
IP54 |
|
Voltage: |
115/208-230 |
|
Frequency (Hz): |
60 |
