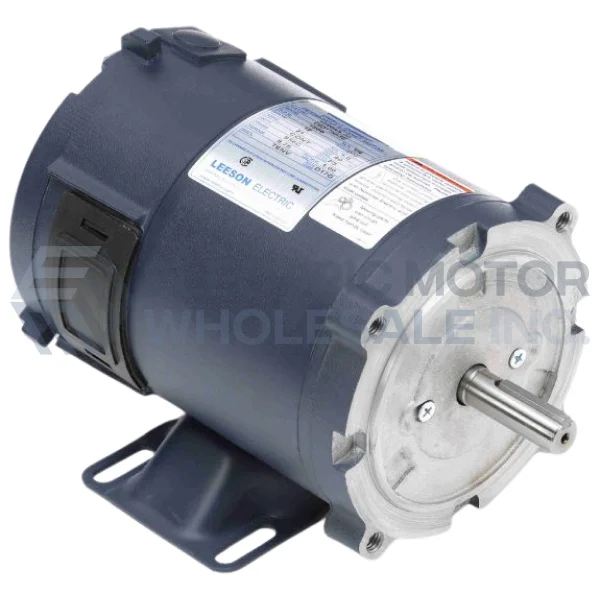

- LEESON 12V Low Voltage NEMA Frame DC Motor is designed specifically for battery, solar, or generator supplied applications. Dynamic braking and reversible rotation capabilities.
Features:
- 5/8″ Keyed output shaft
- Durable rolled steel frame
- C-face mounting provisions with removeable base
- Oversized brushes for long life
- External access to brushes allows for easy replacement
- Heavy-duty, stamped steel, bolt on base (removable)
- Rugged die cast endshields with steel bearing inserts
- Permanently lubricated sealed ball bearings
- Convert to NEMA 48 frame base dimensions or NEMA 42/48 frame C face dimensions with modification kits
- High starting torques for heavy load applications
- Linear speed torque characteristics throughout the speed range
- Capable of dynamic braking for faster stops
- Reversible rotation
- Simple two lead connection
Specifications
|
Application: |
General Purpose |
|
Output HP: |
1/3 |
|
Output KW: |
0.25 |
|
Output RPM: |
1750 |
|
Frame NEMA: |
S56C |
|
Mount NEMA: |
C-Face With Base |
|
Input Voltage DC: |
12 |
|
Full Load Amps: |
27.0 |
|
Winding: |
Permanent Magnet |
|
Enclosure NEMA: |
TENV |
