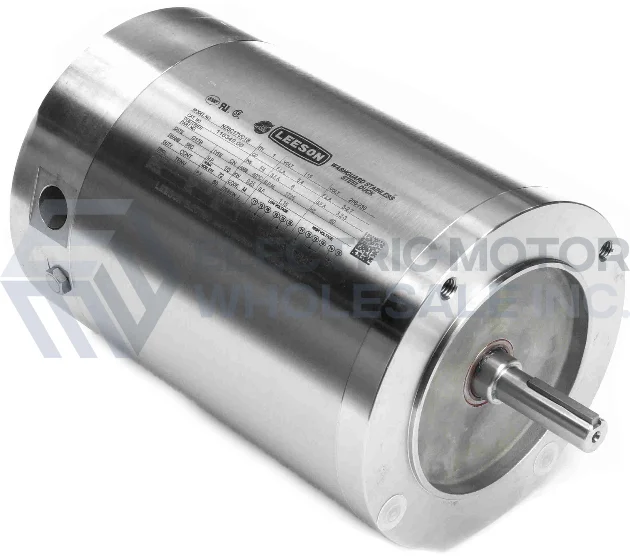

LEESON WASHGUARD Premium Duck All-Stainless Motor is designed specifically to meet the demanding sanitation requirements of the pharmaceutical, food processing and beverage industries. This motor is also ideal in clean room and severe chemical-processing applications involving frequent washdown with nitric acid and caustic lye.
FEATURES:
- Durable 300-Series stainless steel exterior components- frame, endshields, shaft extension, fan guard, hardware, conduit box and cover
- 5/8″ Keyed output shaft
- Solid State Sinpac® switch – no mechanical switch contacts to corrode and fail
- Double sealed bearings with moisture resistant high temperature grease
- Interior coatings applied to the rotor and stator protect against corrosion
- Viton sealing components for superior chemical resistance
- Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
- LEESON’s exclusive IRIS® Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
Specifications
|
Application: |
Washdown Stainless |
|
Output HP: |
1/3 |
|
Output KW: |
0.25 |
|
Output RPM: |
1725 |
|
Frame NEMA: |
56C |
|
Mount NEMA: |
C-Face No Base |
|
Enclosure NEMA: |
TENV |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
115/208-230 |
|
Frequency (Hz): |
60 |
