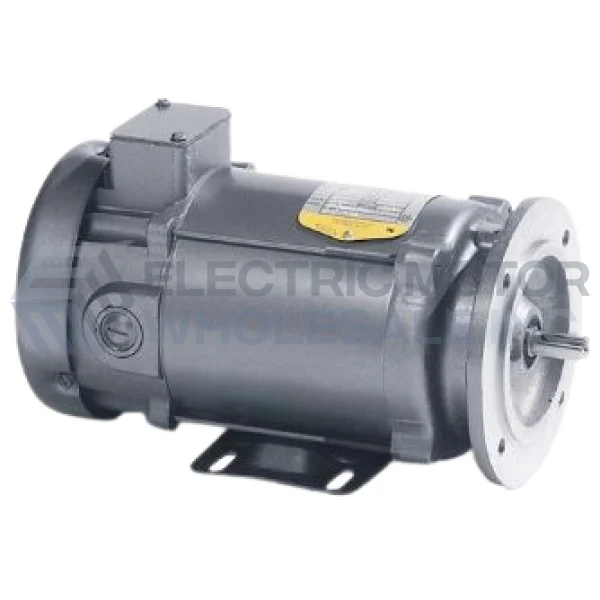

BALDOR DC Permanent Magnet DC Motors are available with a choice of IEC B5 flanges in .2 to 5 HP or B14 C-faces in .2 to 2 HP. All are designed for 180 volt input power with a 20:1 constant torque speed range. These metric frames are designed for replacement on equipment requiring an IEC interface with the gearbox.
APPLICATIONS: include SCR Drive Motors for replacement on machinery requiring metric mounting dimensions.
- B5 Metric flange with B3 foot mounting
- Bolt on non-metric base
- Class F Insulation
- Tach adaptable except type 15kW
- 20:1 constant torque speed range
- Conforms to IEC 60034-1
Specifications
|
Application: |
General Purpose |
|
Output HP: |
1/3 |
|
Output KW: |
0.25 |
|
Output RPM: |
1750 |
|
Frame IEC: |
D71D |
|
Mount NEMA: |
With Base |
|
Mount IEC: |
B5 |
|
Input Voltage DC: |
180 |
|
Full Load Amps: |
1.6 |
|
Winding: |
Permanent Magnet |
