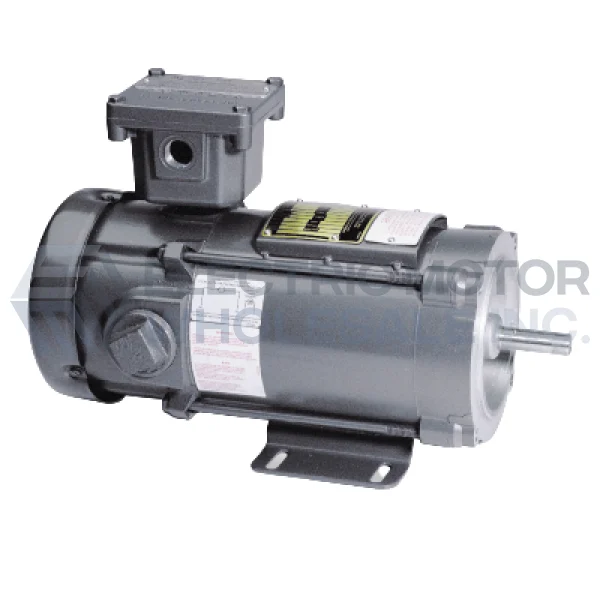

BALDOR NEMA Frame Explosion Proof DC motors include permanent magnet design for adjustable speed operation from SCR controls and have a 20:1 constant torque speed range. Division 1, Class I, Group D and Class II, Group F & G, T3C. locations with listing by both UL and CSA. Thermostat and explosion proof conduit box included. Not Tach adaptable.
APPLICATIONS: Includes conveyors, feeders, mixers and pumps (adjustable speed and constant torque for hazardous locations).
- NOT Tach adaptable
- 5/8″ shaft diameter
- Class F insulation
- Class I, Group D; Class II, Group F&G
- UL and CSA recognized
Note: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. Care should be used when selecting an explosion-proof motor, especially when installed outdoors and on intermittent duty.
Specifications
|
Application: |
Explosion Proof |
|
Output HP: |
1/3 |
|
Output KW: |
0.25 |
|
Output RPM: |
1750 |
|
Frame NEMA: |
56C |
|
Mount NEMA: |
C-Face With Base |
|
Input Voltage DC: |
180 |
|
Full Load Amps: |
1.7 |
|
Winding: |
Permanent Magnet |
|
Enclosure NEMA: |
XPFC |
