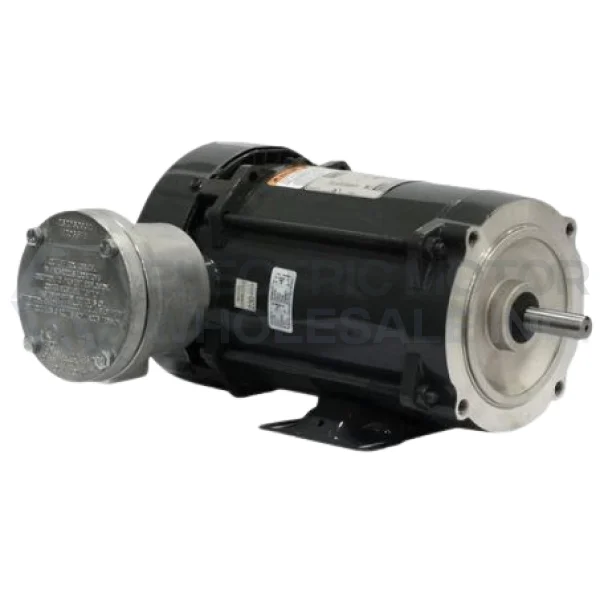

1/2HP WEG 1725RPM 56C TEFC 3PH EXPLOSION PROOF MOTOR .5018XS3E56C

WEG Three Phase Explosion Proof Motor is suitable for applications requiring certification for hazardous locations.

Features:

• 5/8″ Keyed output shaft
• Durable IP55 rated rolled steel enclosure
• Class F insulation (impregnation resin and magnet wire are Class H)
• 1.0 Service Factor
• Automatic Reset Thermal Overload Protector
• Rolled Steel Frame-Cannot be modified with T Box on opposite side
• Rated 50C ambient
• F1 mounted
• Stainless steel nameplate – laser etched with high contrast background
• Non-sparking fan
• NPT threaded terminal box
• Re-greaseable ball bearings (Frames 254T and up)
• CSA Approved – File LR50962
  • Class 1, Division 1, Groups C&D, T3C
  • Class 2, Division 1, Groups F&G, T3C
• UL Listed – File E87848
  • Class 1, Division 1, Groups C&D
  • UL Class 2 motors are now a custom quote with factory lead times. Stock motor label modification are no longer available.

Specifications
