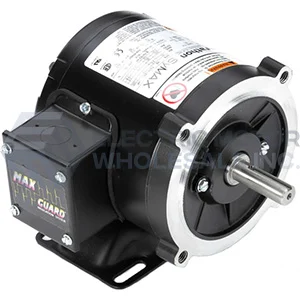

APPLICATIONS: Incorporates a radial flux design which delivers high torque, high efficiency and increased power density, providing incredible system maximization and the potential to eliminate sheaves and belts, gearboxes and chains in certain applications.
FEATURES:
- Meets or exceeds NEMA Premium® (IE3)
- Class F MAX GUARD® insulation system
- Sealed ball bearing
- High power density, low weight design
- Three year warranty
- Requires Drive for Operation
Specifications
|
Brand: |
Marathon |
|
Application: |
Permanent Mag AC |
|
Output HP: |
1/2 |
|
Output KW: |
0.37 |
|
Output RPM: |
1800 |
|
Frame Size NEMA: |
S56CZ |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TENV |
|
Enclosure IEC: |
IP43 |
|
Voltage: |
230/460 |
