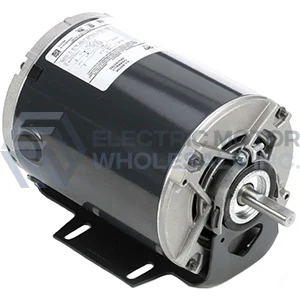

APPLICATIONS: Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans.
SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.
FEATURES:
- Single-speed
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
- 1.25 Service Factor
- Heavy gauge steel frame and base
- UL Recognized and CSA Certified
- Footnotes: 19
Specifications
|
Application: |
Fan & Blower |
|
Output HP: |
1/2 |
|
Output KW: |
0.37 |
|
Output RPM: |
1725 |
|
Frame NEMA: |
56 |
|
Mount NEMA: |
Resilient Base |
|
Enclosure NEMA: |
DP |
|
Voltage: |
115 |
|
Frequency (Hz): |
60 |
|
Efficiency: |
59.5 |
