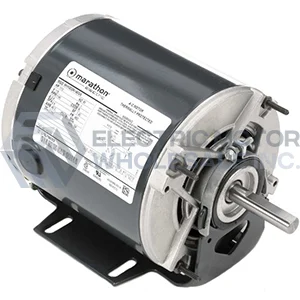

APPLICATIONS: Designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans.
SPLIT-PHASE: A single-phase motor that consists of a running winding, starting winding, and centrifugal switch. The reactance difference in the windings creates separate phases, which produce the rotating magnetic field that starts the rotor.
FEATURES:
- Single-speed
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
- 1.25 Service Factor
- 5/8” Thru-bolts, shaft end
- 1/2” x 1-7/8” Shaft with 1-5/8” Flat
- 48YZ frame has 48/56 frame mounting holes
- Consult Factory for Accessory Kit and/or Modification Selection
- Heavy gauge steel frame and base
- UL Recognized and CSA Certified
- Footnotes: CF,19,31,52
Specifications
|
Application: |
Fan & Blower |
|
Output HP: |
1/2 |
|
Output KW: |
0.37 |
|
Output RPM: |
1725 |
|
Frame NEMA: |
48Y |
|
Mount NEMA: |
Resilient Base |
|
Enclosure NEMA: |
DP |
|
Enclosure IEC: |
IP22 |
|
Voltage: |
115 |
|
Frequency (Hz): |
60 |
