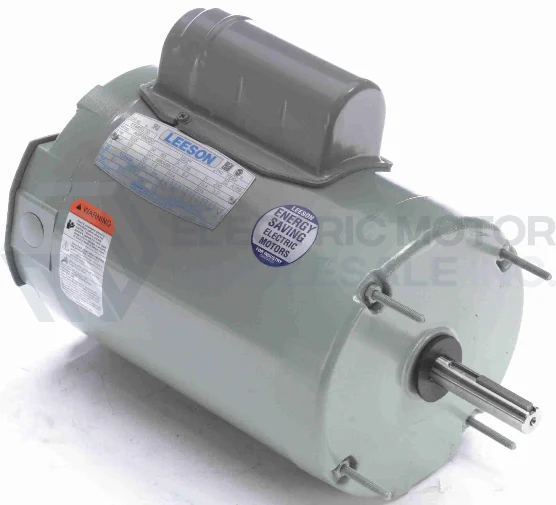

LEESON Single Phase Ventilation Fan Motors are totally enclosed, high efficiency, permanent split capacitor motor for direct drive exhaust ventilation fans in poultry and livestock houses. Because of the inherently low starting torque of this design, this motor is not suitable for belt-driven fan applications. It must be mounted in the air stream of the fan for cooling.
FEATURES:
- Durable rolled steel frame
- 5/8″ Keyed output shaft diameter, 2-5/8″ long
- Dust-tight construction
- Extended through-bolts for mounting, no base
- Automatic overload protection
- Built-in terminal panel for quick, easy connection
- Non USA Manufactured, MX
Specifications
|
Application: |
HVAC |
|
Output HP: |
1/2 |
|
Output KW: |
0.37 |
|
Output RPM: |
825 |
|
Frame NEMA: |
48YZ |
|
Mount NEMA: |
Thru-Bolt |
|
Enclosure NEMA: |
TEAO |
|
Enclosure IEC: |
IP43 |
|
Voltage: |
115/230 |
|
Frequency (Hz): |
60 |
