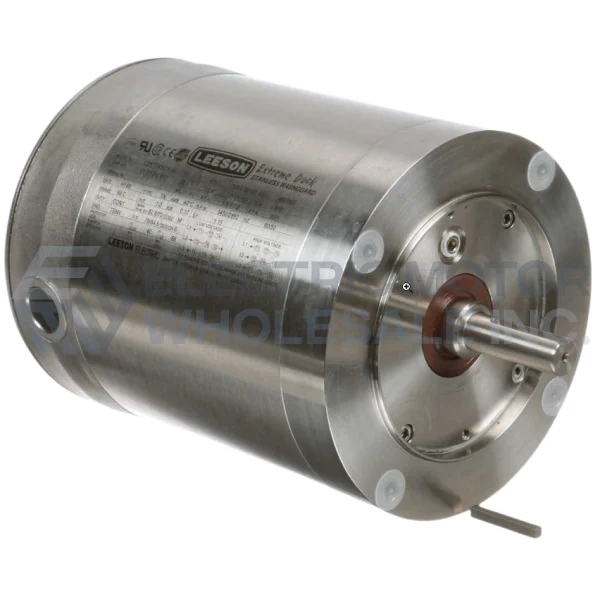

LEESON Three Phase Extreme Duck Ultra Motor built to withstand the extreme washdown and sanitation requirements of the food processing, pharmaceutical, packaging, and bevarage industries. 300-Series Stainless Steel used on all exterior surfaces gives ideal protection against severe chemical-processing applications and frequent washdown processes using salt water, nitric acids and solvents.
FEATURES:
- 5/8″ Keyed output shaft
- Three year warranty
- All exterior components are 300-Series stainless steel
- IRIS inverter rated insulation system provides extra protection and long life
- Unique “Q-CAR” rotor/cartridge seal system designed for quick access to the interior of the motor
- “HS2” Hydro-sealed system eliminates the need for drain plugs and breathers
- Minimal exterior hardware which may trap contaminants
- Vacuum assisted internal epoxy encapsulation reduces interior air pockets where condensation can occur
- Full fact nameplate etched in frame
- Double sealed ball bearings
- Two piece Viton shaft seal with flinger
- Color-coded, non-wicking lead wires with chemical and abrasion resistant markers
Standards and Approvals
- Motors are UL component recognized – file number E57948, guide number PRGY2
- CSA Energy Efficiency Verification Program, report number EEV 78720-1
- Construction is CSA Certified for safety, report number LR33543
- Listed under BISSC authorization number 769
Specifications
|
Brand: |
Leeson |
|
Application: |
Washdown Stainless |
|
Output HP: |
0.50//0.33 |
|
Output KW: |
0.37//0.25 |
|
Output RPM: |
1725//1425 |
|
Frame Size NEMA: |
56C |
|
Mount NEMA: |
C Face No Base |
|
Enclosure NEMA: |
TENV |
|
Enclosure IEC: |
IP69 |
|
Voltage: |
208-230/460//190/380 |
