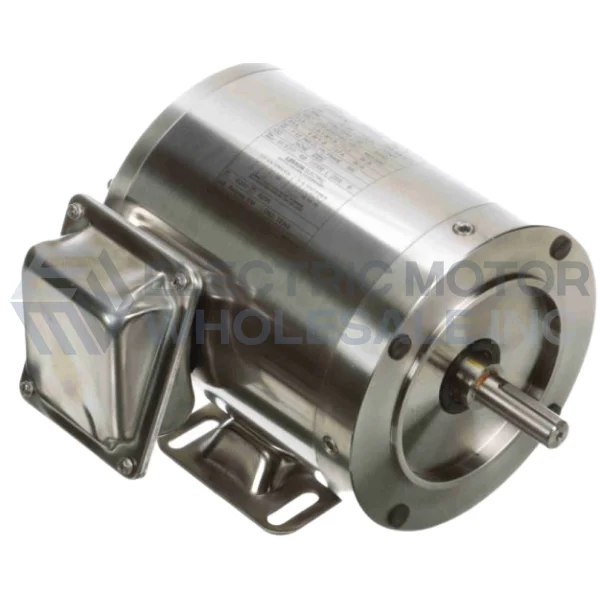

LEESON Three Phase Washguard Stainless Duck Motor is designed for long-life in demanding washdown applications. Built with all stainless steel external components and well sealed against moisture and condensation, these all-stainless motors are able to withstand severe washdown environments. When a paint-free motor is needed for ultra-clean operations in the food processing, bottling and pharmaceutical industries, count on LEESON Stainless Duck motors to meet the need—at a price that defines value.
Features:
- 300 Series stainless steel exterior components
- 5/8″ Keyed output shaft
- C-face mounting provisions with heavy duty 12G stamped base
- Buna-N gaskets and Viton shaft seals
- TEFC models: Seals and gaskets on both ends of shaft extension
- Anti-corrosion coating applied to rotor and stator
- Moisture resistant sealant between frame and endshields
- Laser etched full-fact nameplate
- Double sealed bearings
- Split conduit box design with flanged cover and rubber gasket
- Condensate drains for all mounting orientations in each endshield
- IRIS Inverter duty insulation system (Class F)
Specifications
|
Brand: |
Leeson |
|
Application: |
Washdown Stainless |
|
Output HP: |
0.5//0.33 |
|
Output KW: |
0.37//0.25 |
|
Output RPM: |
1140//950 |
|
Frame Size NEMA: |
56C |
|
Mount NEMA: |
C Face With Base |
|
Enclosure NEMA: |
TENV |
|
Enclosure IEC: |
IP55 |
|
Voltage: |
208-230/460//190/380 |
